Product SKU: HAL HT-195100

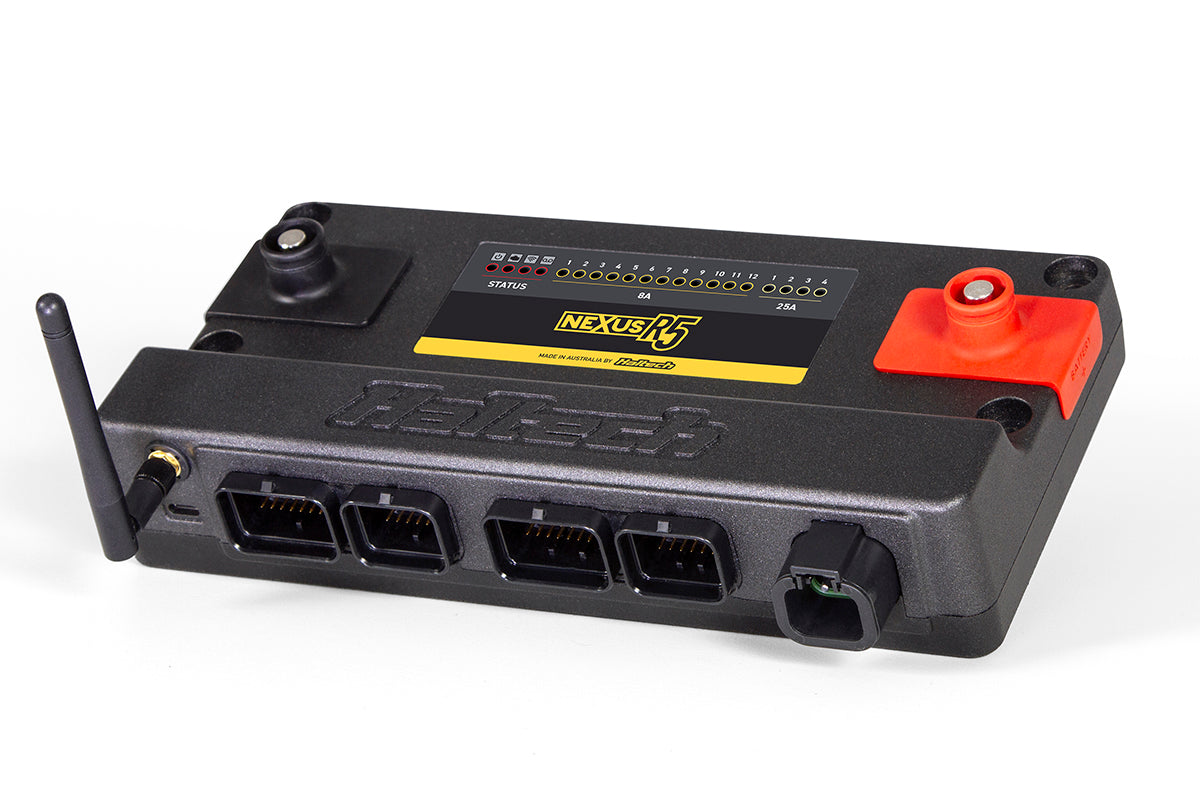

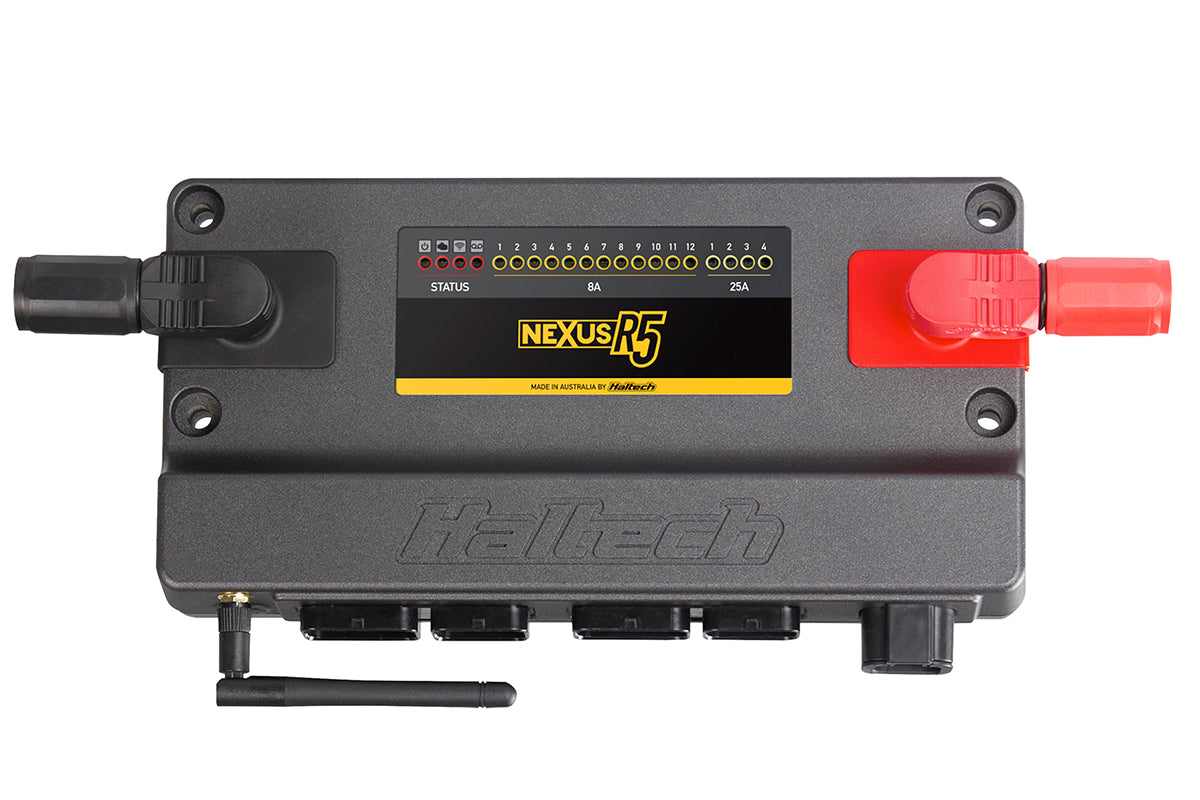

NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
Features
- 4x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18x peak/hold injector drivers (can be used as low side drive outputs)
- 12x low current ignition outputs (can be used as low side drive outputs)
- 8x low side drive outputs, PWM capable (DPOs)
- 4x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2x onboard wideband controllers, supporting NTK and LSU4.9
- 3x CAN ports with switchable termination
- Built-in accelerometer and digital oscilloscope
- Laptop and on board data logging with up to 300 channels per log
Additional Controls
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
Compatible Automatic Transmissions
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty

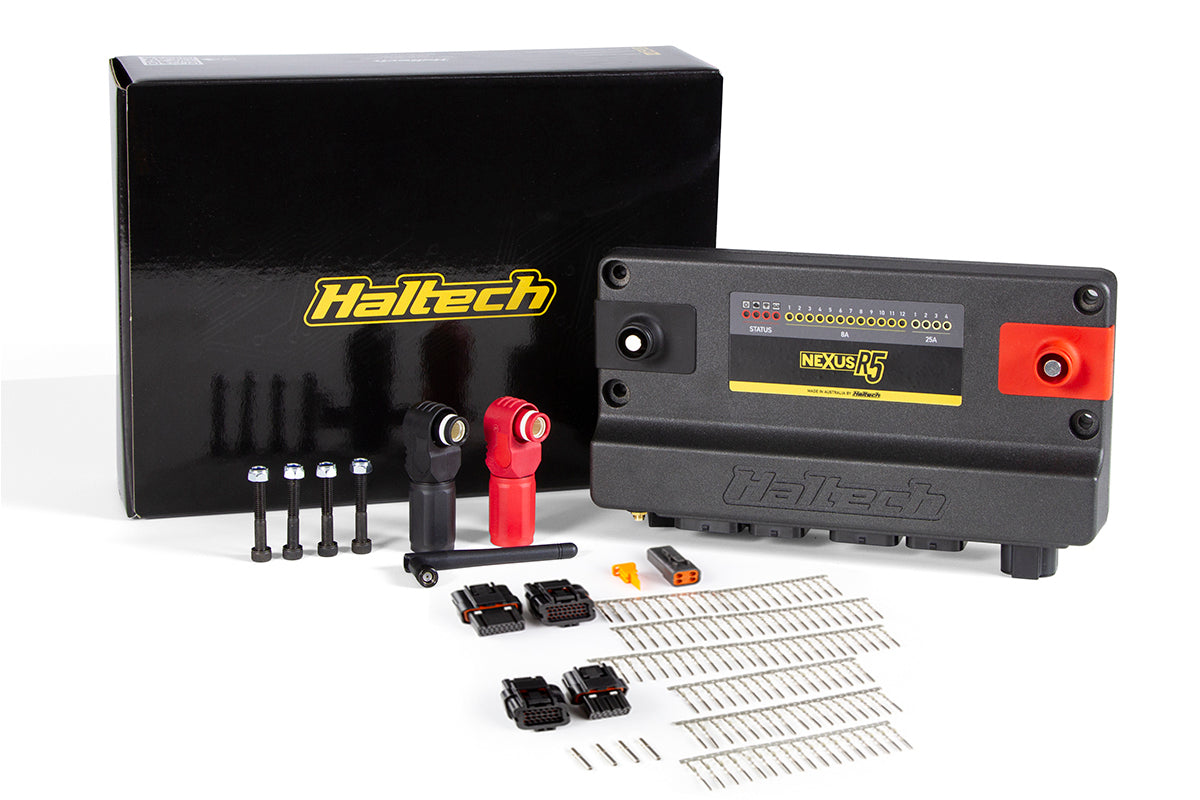

Package Includes
- NEXUS R5 Vehicle Control Unit
- SurLok connectors (Red and Black)
- Wi-Fi antenna
- mounting bolts
- USB-C Cable
- USB-C dust cap
- USB drive with NSP Software
- Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4
