Product SKU: LNK ECS

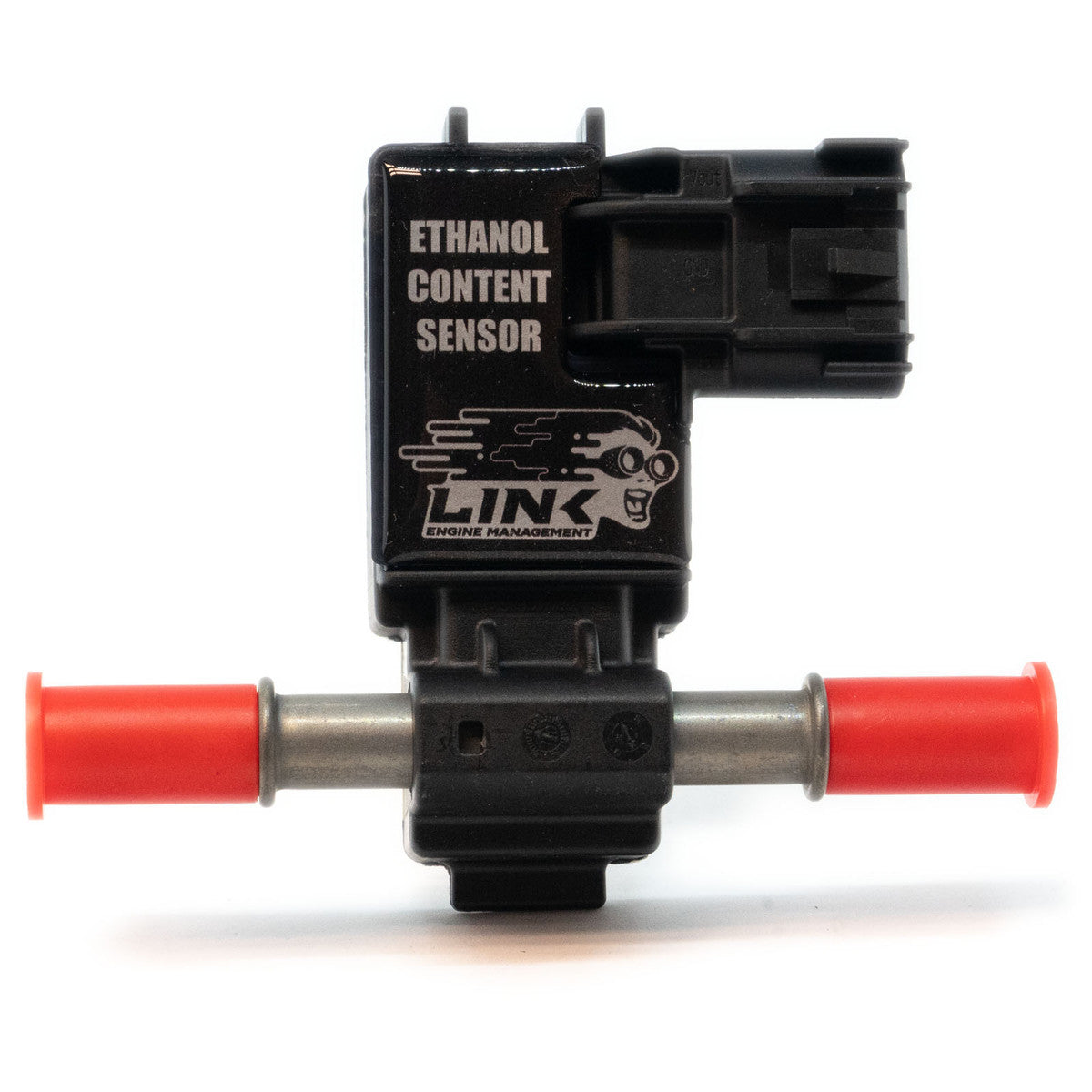

Looking to run flex-fuel? Then the Ethanol Content Sensor is a must have. The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex fuel vehicle. This sensor also measures fuel temperature. Compatible with all current Link Wire-In and Plug-In ECU’s. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.

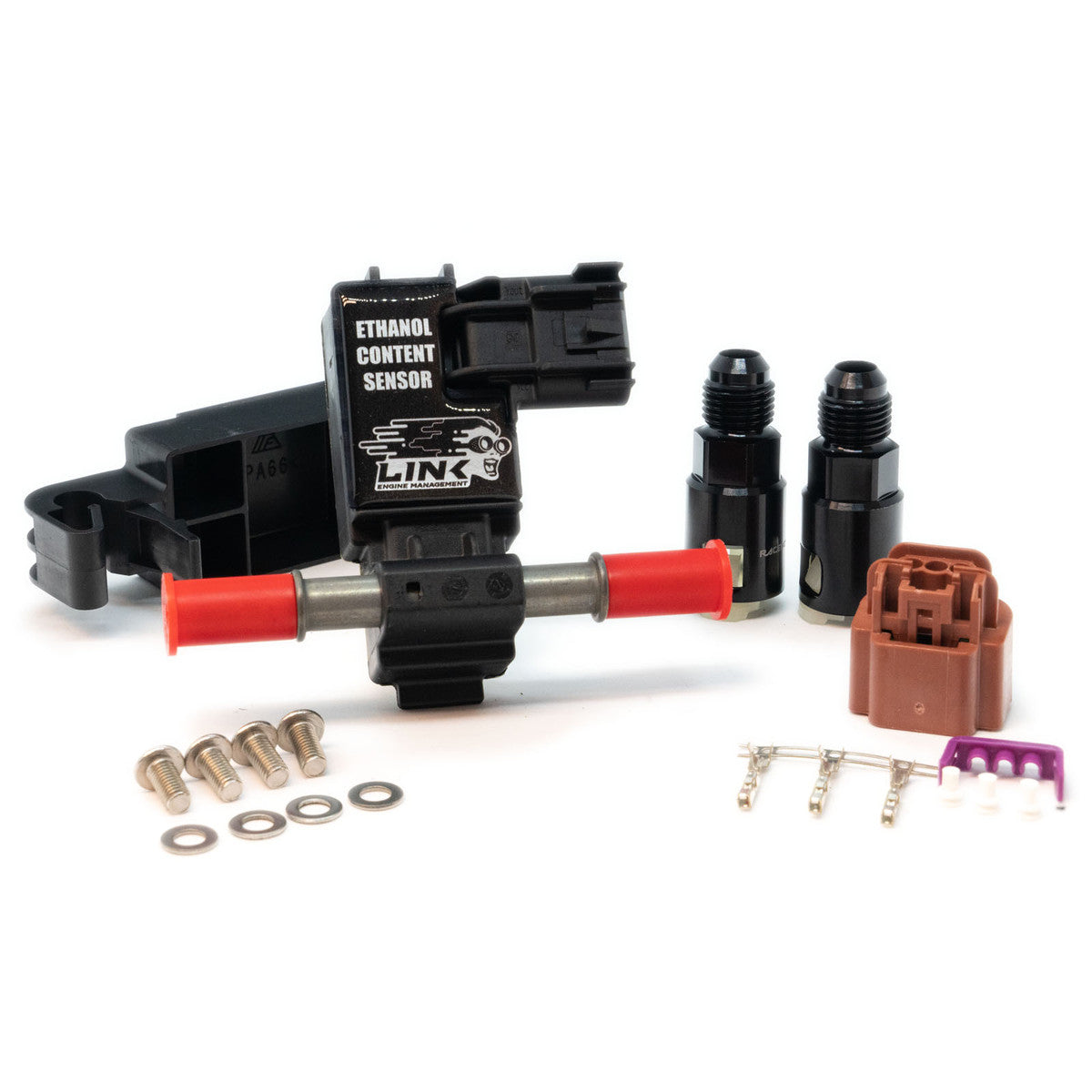

Package Includes
- Ethanol Content Sensor

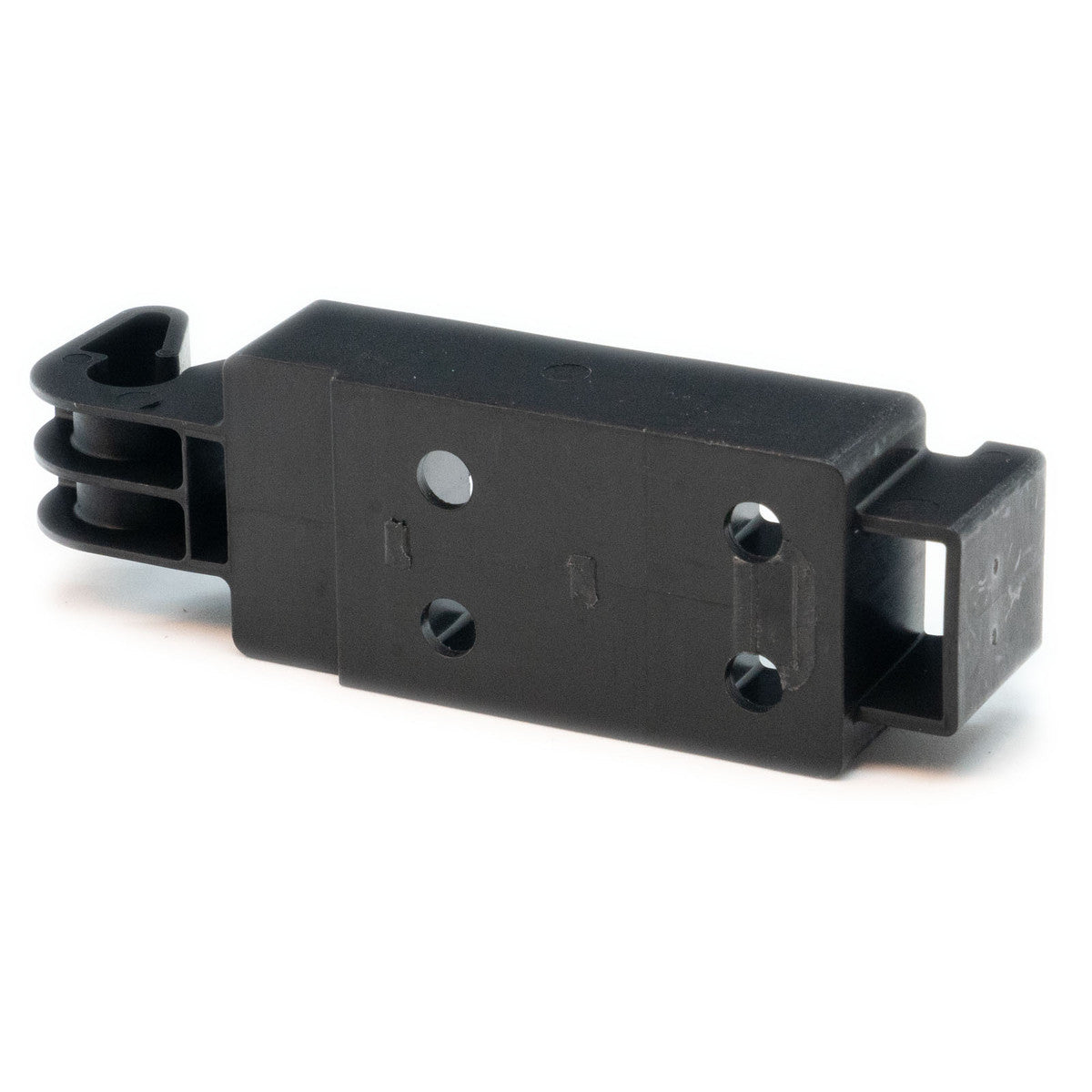

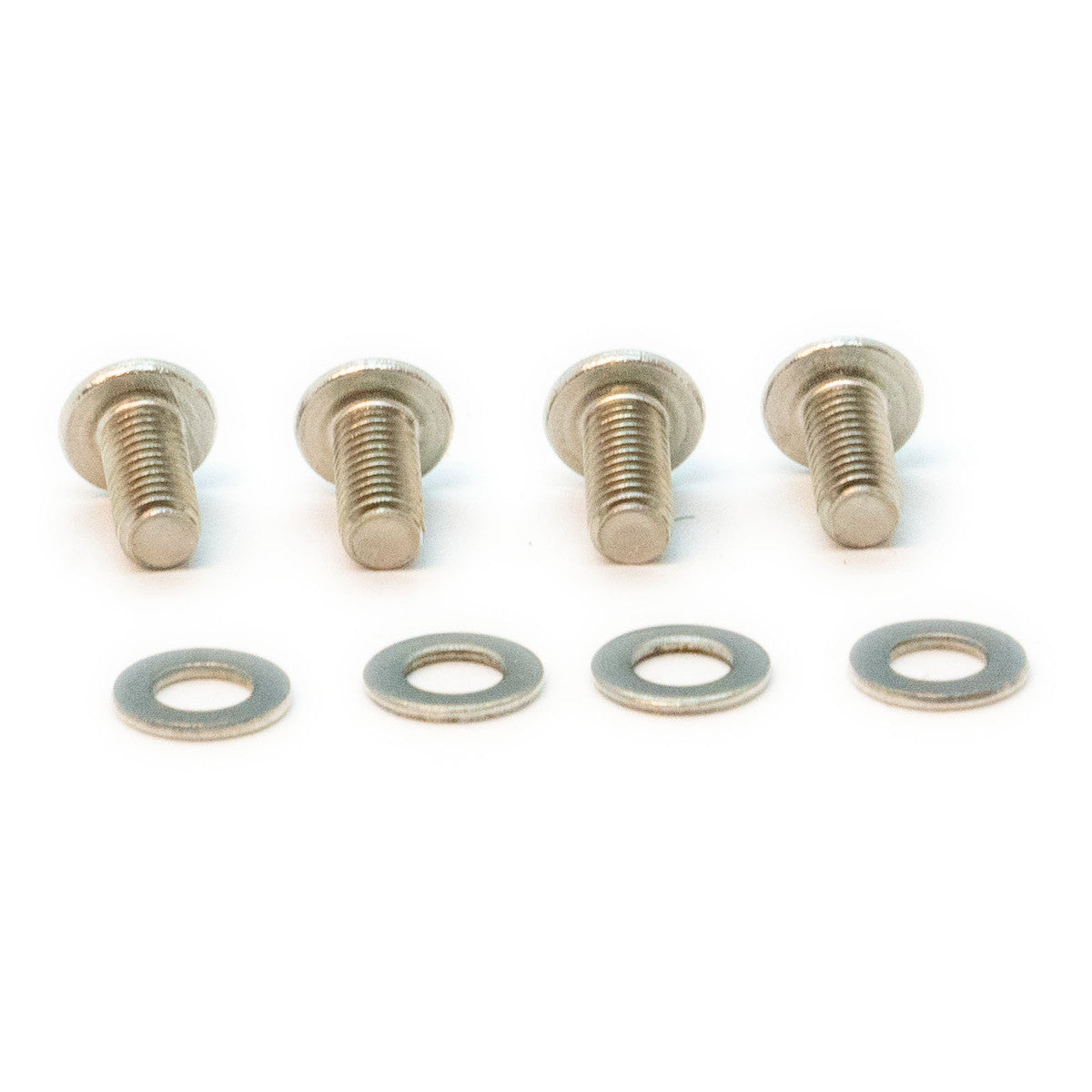

- Mounting bracket and hardware

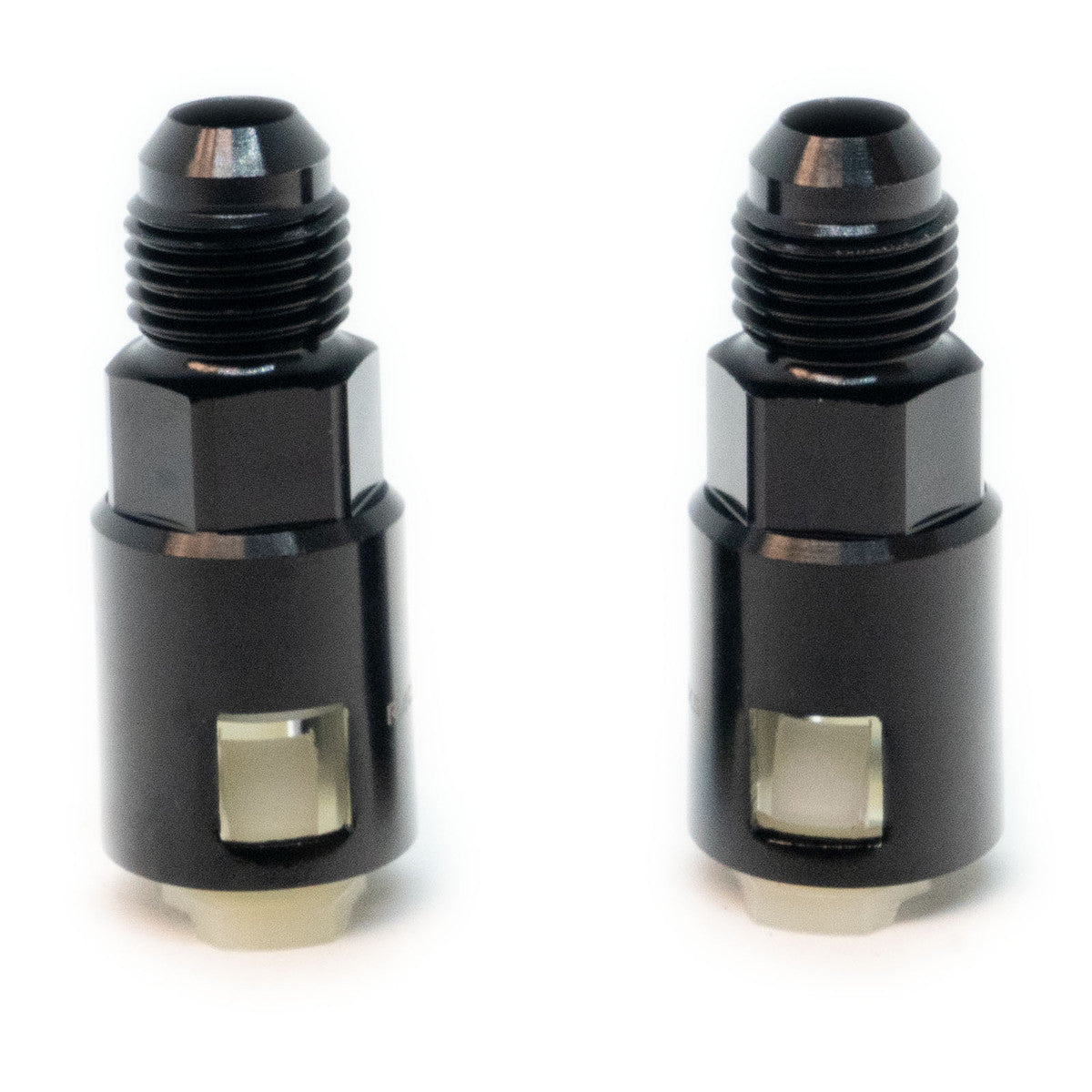

- 2x AN-6 Straight Fittings

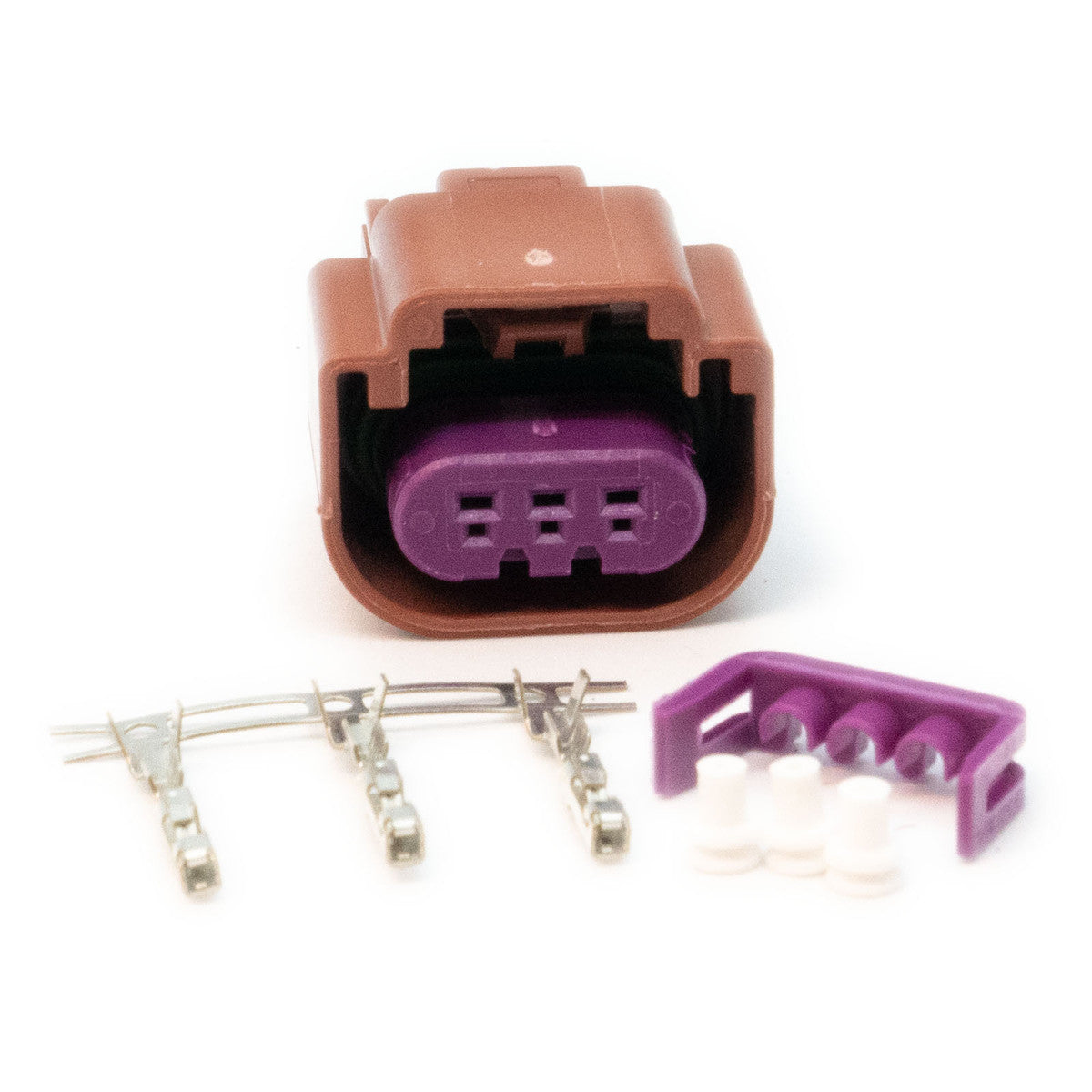

- Plug and pin kit
Pinout as indicated on the sensor
- Vcc (+12V supply)
- GND (ground)
- Vout (digital signal out)
