Product SKU: LNK STORMX
The Link G4X range of engine management systems builds upon the previous G4+ ECUs by featuring an all new micro-processor, an upgraded communications chip and expanded data logging. These improvements allow for a more responsive and accurate tune, much faster download speeds and far greater internal data logging capacity.
The Link G4X range of engine management systems are well known for delivering class-leading performance without sacrificing factory levels of drivability.

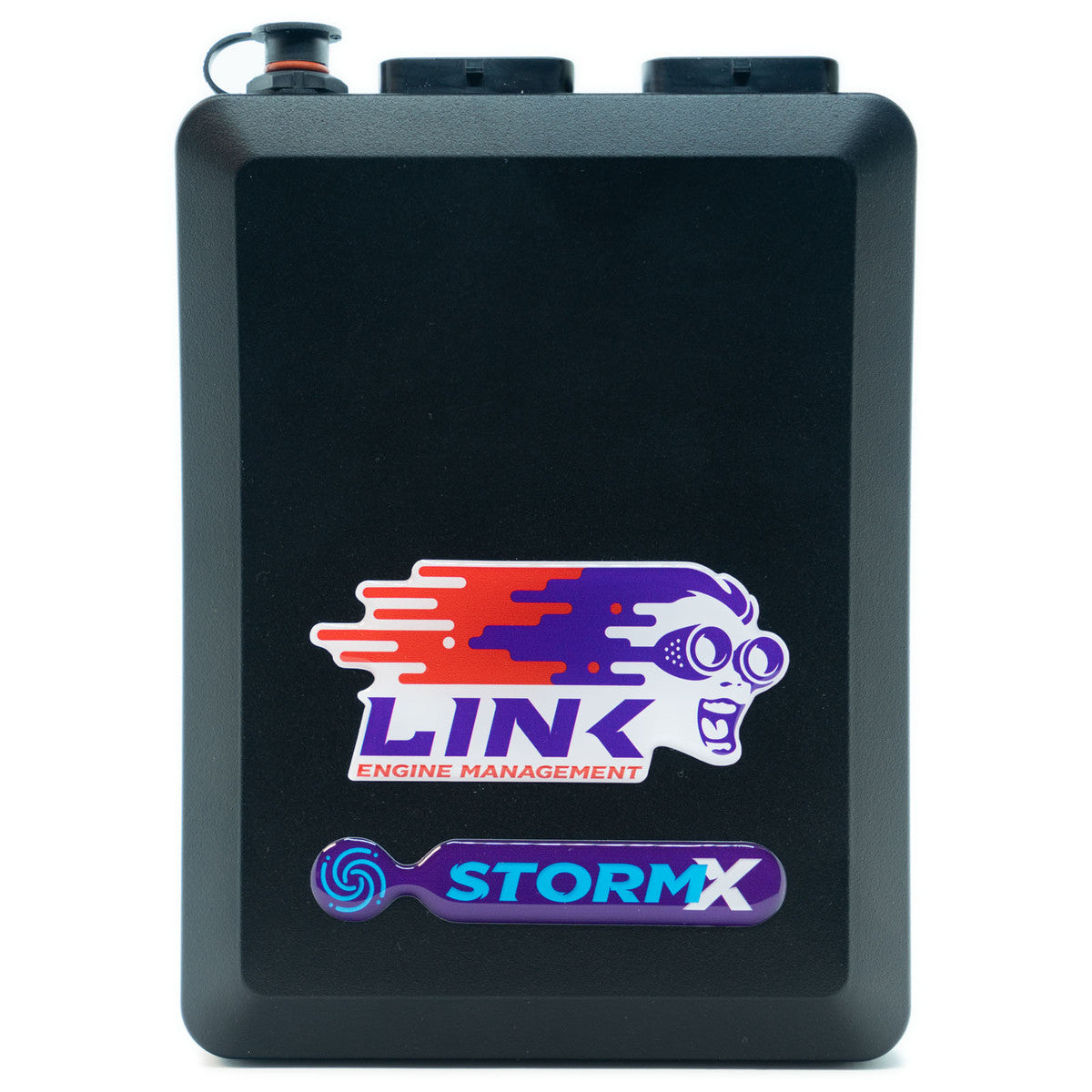

The Link G4X StormX ECU is the latest version of our trusty, mid-sized ECU. With eight injector and eight ignition drives, it allows sequential injection and direct spark on engines with up to eight cylinders or four rotors.
The StormX has all the upgrades of the AtomX and MonsoonX but offers more advanced tuning features like a built in Trigger Oscilloscope, Stepper Motor Idle Control, Rotary Oil Metering Pump Control, Onboard Knock Control, Open and Closed Loop Boost Control plus most Motorsport features including Full Gear Shift Control, Antilag and Launch Control.
The StormX has expanded data logging and is more responsive with a higher bandwidth than its G4+ Storm predecessor. Control loops are also more precise compared to its G4+ predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications.
G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.
It also features 8 x faster communications speed, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink.
Ideal Applications:
- 1-12 Cylinder Distributed
- 2-12 Cylinder Wasted Spark
- 1-8 Cylinder Direct Spark
- Odd Fire Engines
- 2-Stroke, 4 Stroke and Rotary Engines
- Configurable Firing Order
- Configurable TDC Points (for odd fire)
Inputs:
- 8 x Digital inputs
- 3 x Temperature inputs
- 8 x Analog inputs
- 2 x Trigger Inputs
- 2 x Knock Inputs
Outputs:
- 8 x Injector drives
- 8 x Ignition drivers
- 8 x Auxiliary outputs (All PWM capable)
- +5V Sensor power supply
- +8V Sensor power supply
- Note: unused ignition drives can be used as additional Aux outputs
Communications:
- 1 x CAN bus
- 1 x USB tuning connection
- Upgraded Communications Chip
Package Includes
- G4X StormX ECU
- USB tuning cable
- Wiring and Installation Instructions
- 2 large Link Stickers
- 2 small Link Stickers
