Product SKU: RAD 20-0940

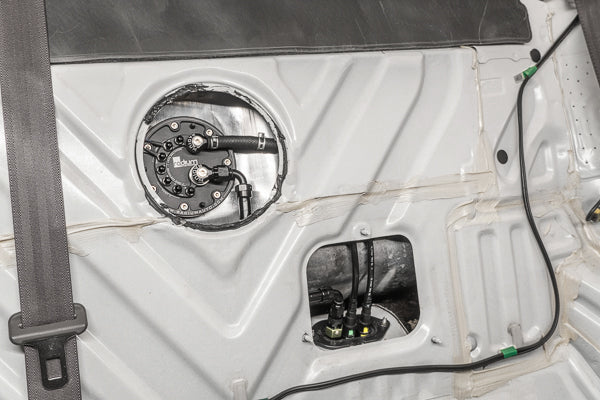

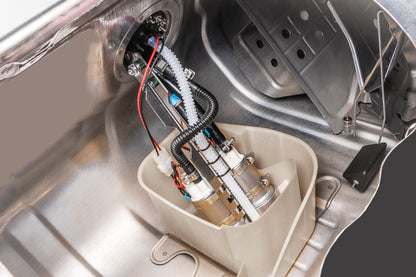

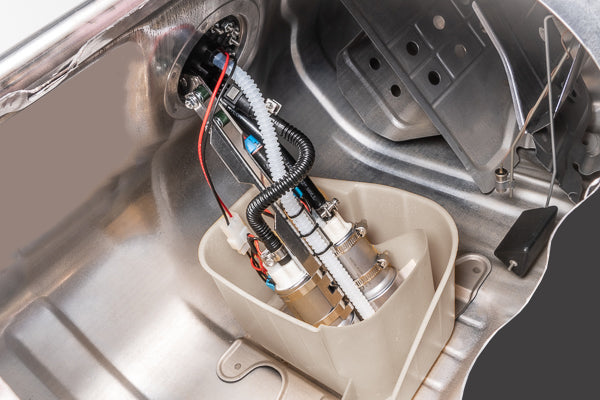

The Radium Engineering Fuel Pump Hanger is a drop-in aftermarket fuel pump solution for supplying the fuel required to maximize power gains. This in-tank fuel pump hanger for the Toyota JZX chassis vehicles replaces the factory fuel pump assembly. It can be used with one or two aftermarket fuel pumps and includes the necessary components for hook-up to OEM fuel lines. Aftermarket fuel lines are also compatible with appropriate fittings, sold separately. Fuel pumps are not included.
Features
- Drop-In Installation
- Dual Pump Capable with Popular Pumps
- Brushless Fuel Pump Compatibility
- High Current Electrical Hardware
- Anodized Aluminum Construction
- Gasoline, Methanol, and Ethanol Compliant
- Fuel Resistant Tubing and Wiring
- Stainless Steel Hardware
Plumbing

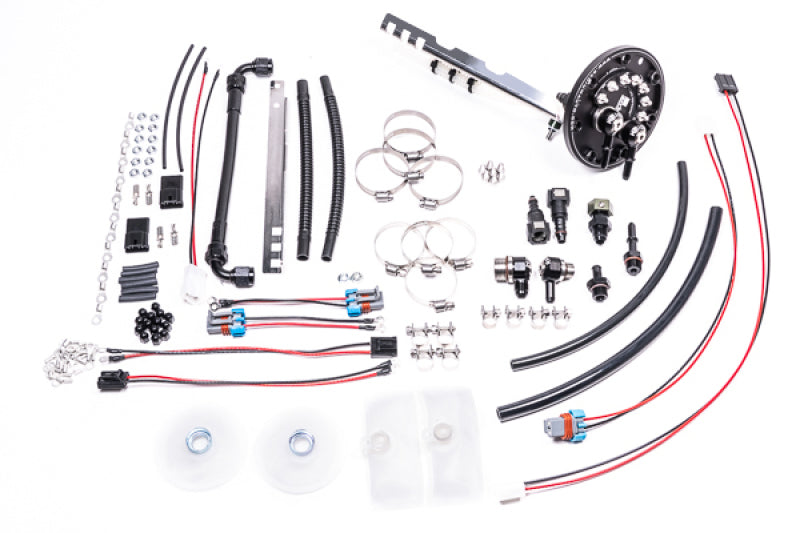

Multiple adapter fittings are provided for connecting back to the OEM fuel lines. If a second pump is installed, an SAE quick connector is provided that snaps into the underside of the fuel hat simplifying installation. For later model vehicles that use the inverted flare feed line, a replacement PTFE feed hose is provided.
Electrical Wiring

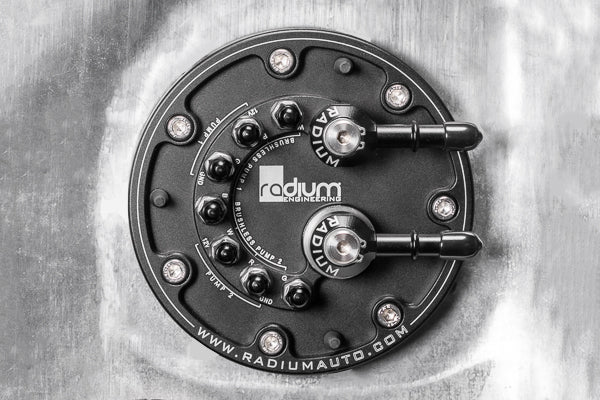

The custom designed stainless electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels.
Non conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Electrical hardware is included for the fuel pump(s). Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE. Relay kits, such as 17-0031, are recommended to drive these new internal fuel pump(s).
Pump Compatibility
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- Walbro F90000295
- Walbro GSS342
- Ti Automotive BKS1001 (brushless)
- AEM 50-1200
- Bosch BR540
- Deatschwerks DW400
- Deatschwerks DW440 (brushless)
- Protec 11928 (brushless)
- Fuelab 49614 (brushless)
Note: Sock filters are provided in this kit for the Walbro, Ti and AEM pumps listed. All other pumps, use manufacturer's sock filters.
Fitment:
- Toyota Chaser (X90)
- Toyota Chaser (X100)
- Toyota Mark II (X90)
- Toyota Mark II (X100)
- Toyota Cresta (X90)
- Toyota Cresta (X100)
Note: Installation instructions available at www.radiumauto.com
